DESCRIPTION

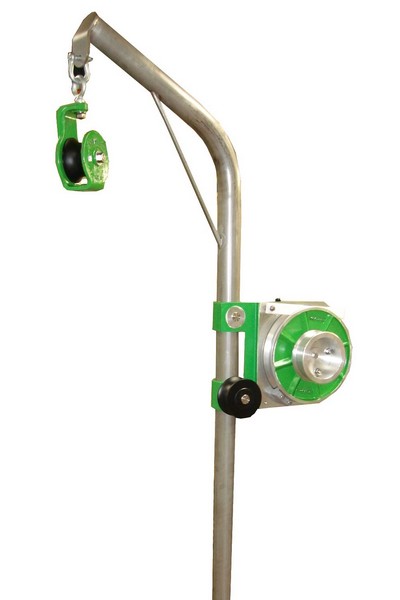

Specifically designed for inshore fishing, the hydraulic pots hauler Ø375mm is ideal for hauling up pots, octopus pots and lines. It is our biggest model.
Made of aluminium treated to withstand marine environments, the hauler is equipped with a hydraulic distributor with an integrated pressure relief valve, as well as an ejector knife to facilitate line removal.
The aluminium sheaves with a Ø375mm accommodate ropes from Ø8 to Ø14mm. The line coiling is fully
automatic, ensuring simple and e(icient operation. It comes with a stainless-steel davit arm, equipped with an open pulley for guiding the rope.
The hydraulic pot hauler Ø375 with davit arm must be connected to a hydraulic circuit powered by an inboard engine.
OPTIONS
-
Set of sheaves, metallized steel (ref 104605)
-
Capstan head (ref 375260)
KEYWORDS
Pots, octopus pots, lines, Hydraulic pots hauler, Hydraulic motor + distributor, Davit arm with open pulley
Coastal fishing, Fishing boat: 7 to 10 m, French manufacturer
Technical characteristics
Pulling power kg: 400
Speed RPM: 0 to 80
Oil flow l / min: 27
Pressure in use: 120 bars
Pressure max: 140 bars
Power : 7.3 HP
Size: 120 x 23 x 220 cm
Weight: 78 kg
Download datasheet
We reserve the right to modify, at any time, the layout, design, dimensions, or materials of our devices, machines, and components as described in our promotional documents.
