DESCRIPTION
The hydraulic petrol power pack is designed to power all types of hydraulic haulers, and more particularly our own VIRHYDRO fishing equipment installed on outboard motorboats.
Compact and robust, it offers independent hydraulic power, ideal for vessels without an integrated hydraulic circuit.

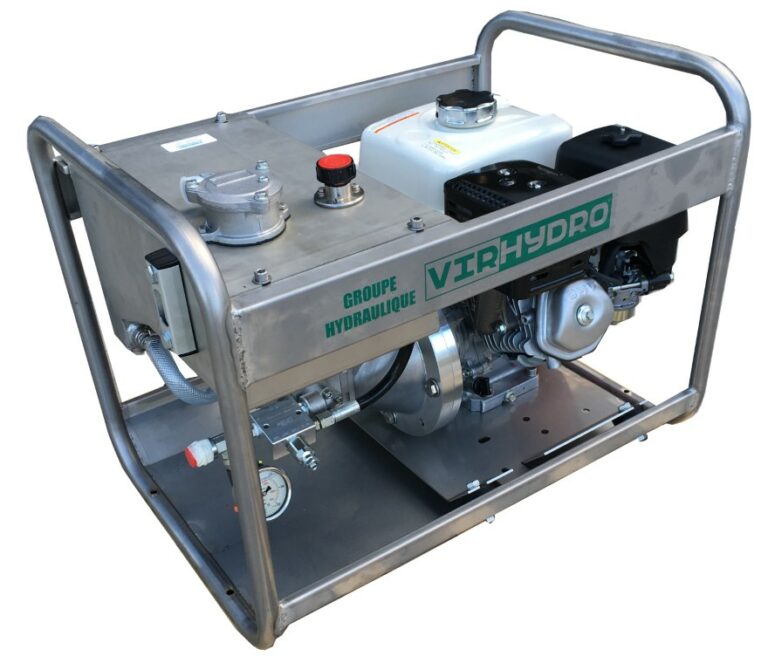

The hydraulic petrol power pack is placed into a stainless-steel frame and includes:
- HONDA 4-stroke engine, petrol, with manual
- hydraulic pump,
- Stainless steel oil tank, with a return filter, a filling cap and an oil indicator,
- pressure relief valve and control system.
KEYWORDS
Autonomous hydraulic power pack, Compatible with any haulers, Stainless steel frame, Honda 4-stroke engine, Coastal fishing, Fishing boats: 7m to 10m, French manufacturing
Technical characteristics
REFERENCE 720
Power: 3.5 HP
Oil flow l / min: 9
Pressure max: 120 bar
Size: 65 x 45 x 50 cm
Weight: 39 kg
REFERENCE 730
Power: 5.5 HP
Oil flow l / min: 16
Pressure max: 170 bar
Size: 65 x 45 x 50 cm
Weight: 45 kg
REFERENCE 770
Power: 8.5 HP
Oil flow l / min: 25
Pressure max: 120 bar
Size: 75 x 51 x 90 cm
Weight: 62 kg
Download datasheet
We reserve the right to modify, at any time, the layout, design, dimensions, or materials of our devices, machines, and components as described in our promotional documents.
