DESCRIPTION

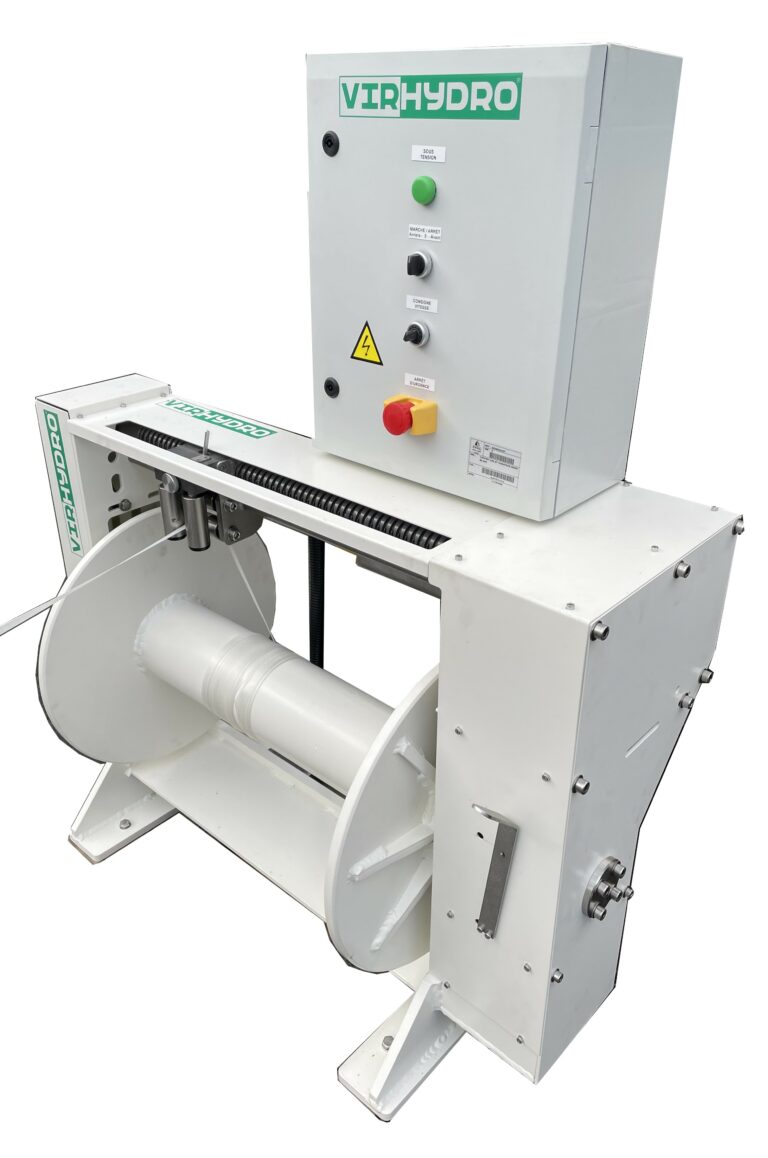

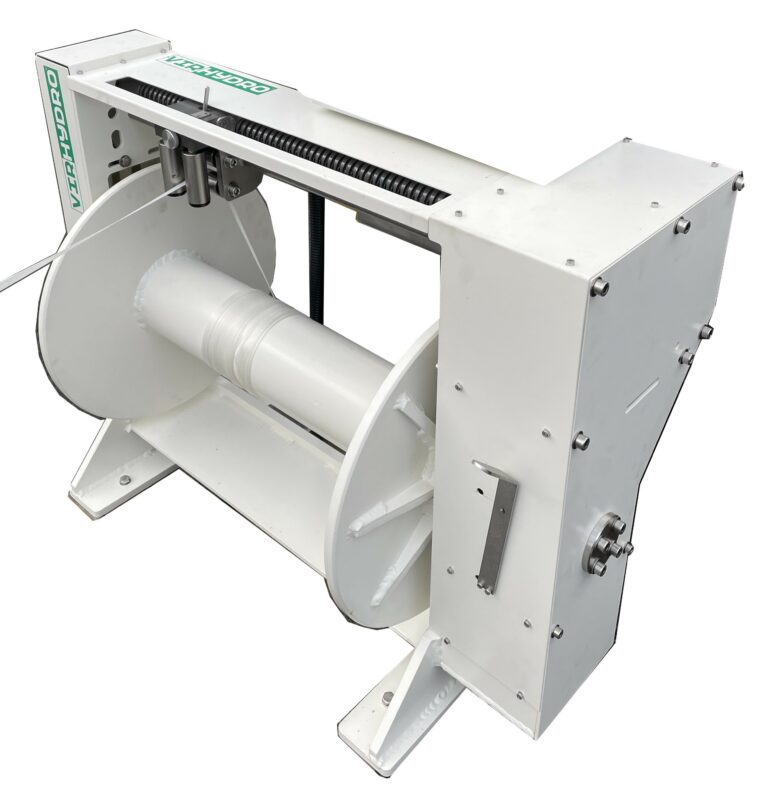

The electric longline spool is specially designed for small boats. Its robust structure, made of treated aluminium and stainless steel, ensures excellent corrosion resistance in marine environments.
Equipped with a 24V electric motor and variable speed drive, it can be used flexibly and adapted to different fishing phases.
The spool incorporates a line-stacking system to facilitate longline storage during retrieval. This system can be disengaged while the line is being deployed. The drum Ø500mm has a storage capacity of:
- 23700m of Ø2mm line (12.8NM)
- 10500m of Ø3mm line (5.7NM)
Retrieval performance:
- Average speed: 80 rpm
- Retrieval speed: empty spool = 20 rpm and full spool: max 80 rpm
KEYWORDS
Longline, High-capacity drum, Electric longline spool, Fishing boat from 7m to 10m, Made in France, Line-tracking system, Coastal fishing
Technical characteristics
Pulling power: 115 kg
Speed RPM: 0 to 80
Voltage: 24 V
Size: 100 x 40 x 90 cm
Weight: 110 kg
Download datasheet
We reserve the right to modify, at any time, the layout, design, dimensions, or materials of our devices, machines, and components as described in our promotional documents.
